Ergonomic EV Charging Solutions for Fleets
For Businesses Driving the Future: Stay Charged, Stay Ahead!
Reliable Fleet Charging with Support Management
Intelligent Charging Management
Reliable 24/7 Services
Owl
Input supply: Single phase 230 VAC @ 16A
Sockets: 3 Sockets
Power output: 1.1 kW
Connector type: IEC 60309 (3-pin female connector)
Dimensions: 480 × 250 × 130 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current
Eagle Lite
Input supply: Single phase 230 VAC @ 32A
Sockets: Single Cable
Power output: 7.4 kW Max
Connector type: Type - 2 AC
Dimensions: 520 x 340 x1 70 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP65
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current
Albatross
Input supply: 3 phase 400-415V AC @ 15A Each Phase
Sockets: 3 Sockets
Power output: 3.3 kW Max, per output
Connector type: IEC 60309 (3-pin female connector)
Dimensions: 670 × 333 × 165 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current
Eagle
Input supply: 3 phase 400-415V AC @ 32A Each Phase
Sockets: 2 Cables
Power output: 7.4 kW Max, per output
Connector type: Type - 2 AC
Dimensions: 630 × 333 × 165 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current

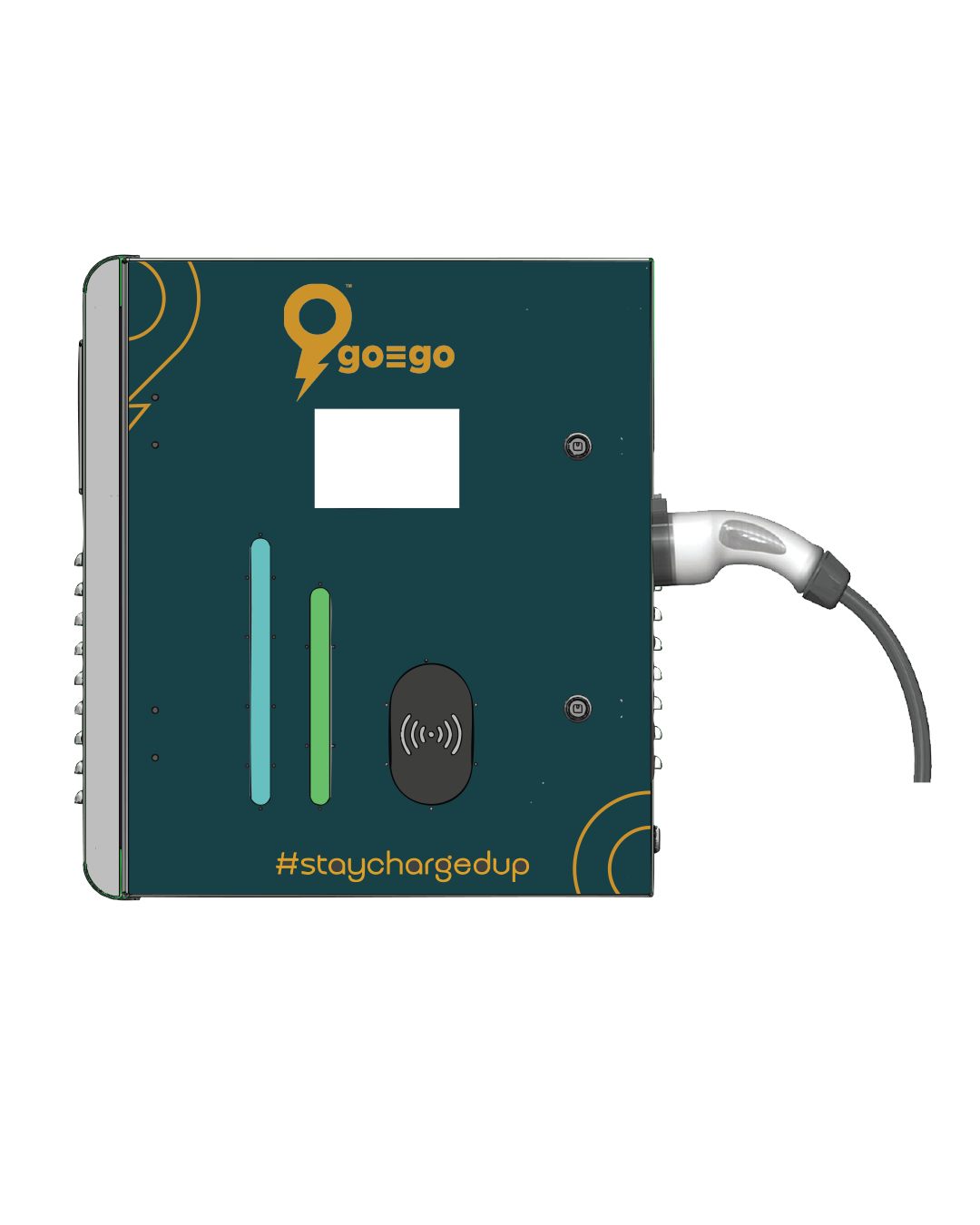

Pelican
Input supply: 3 Phase 400-415 VAC @ 45A each phase
Sockets: Single Cable
Power output: 30 kW Max
Connector type: CCS2
Dimensions: 500 × 700 × 300 mm (H×W×D)
Mounting type: Wall / Pole mount
IP rating: IP54
Protection: Over-Voltage, Over-Current, Under-Voltage, Short Circuit, Surge protection, Over temperature, Ground fault, Lightning protection, Insulation Monitoring, Residual Current Protection
Pelican Pro
Input supply: 3 Phase 400-415 VAC @ 100A each phase
Sockets: 2 Cables
Power output: 60kW while a single GUN is occupied and 30kW each in case of both the GUNs are occupied
Connector type: CCS2
Dimensions: 1500 × 500 × 550 mm (H×W×D)
Mounting type: Floor mount
IP rating: IP54
Protection: Over-Voltage, Over-Current, Under-Voltage, Short Circuit, Surge protection, Over temperature, Ground fault, Lightning protection, Insulation Monitoring, Residual Current Protection
